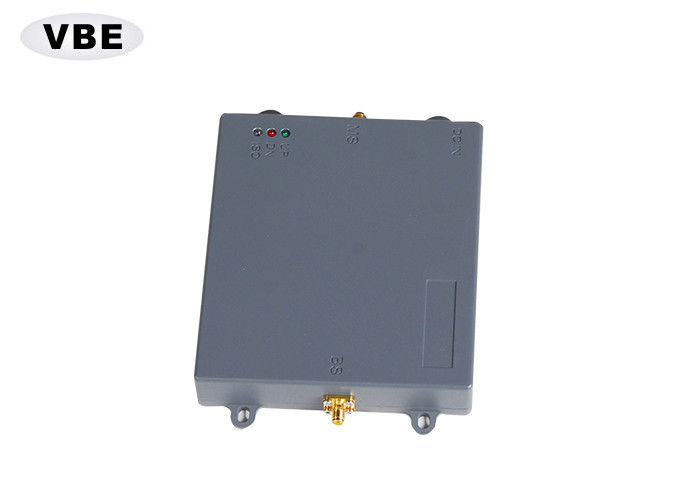

Easy Installation Cell Phone Signal Repeater Good Aluminum Shielding Work Current ≤1.5A
Product Name:
Cell Phone Signal Repeater
Dimension:
150x115x27 Mm
Net Weight:
≤0.5kg
Work Voltage:
DC 5.0V
Power Amplifier , Signal Booster , Cell Phone Signal Repeater
Product Instructions:
This product has the function of two-way wireless forwarding of mobile communication signals, effectively extending the coverage and filling the blind area of mobile communication coverage.Under the premise of not interfere with the base station, and fully amplification carrier frequency within the working frequency band signal, restrain interference, to provide users with stable and reliable signal, users enjoy high quality communication service. This product is mainly used for indoor small area coverage. Its widely used in: car park, business center, airtight entertainment venues, transport, etc.
Product Features:
Isolation detection of donor and regenerator antenna;
Automatic gain control (AGC) has a wide range;
High-speed digital ALC;
Output power indication;
The device will sleep automatically when no user speaks.. When the device is self-excited, the upper and lower automatic shutdown;
The device's uplink noise function will not interfere with the base station.
Automatic upper and lower gain balance;Small size, light weight, beautiful appearance, high gain and low power consumption;
Low noise amplification, improve the voice quality, reduce dropped words;
Good aluminum shielding, greatly improving the anti-interference ability;
Easy installation and opening.
Product Application:
Car park, business center, airtight entertainment venues, transport, etc.
Technical Specifications:
No.
Module No.
Color
Work Frequency
Uplink
Downlink
1
C800-65-10-PT-DX
Creamy White
825-835
870-880
2
G900-65-10-PT-YD
Black
889-909
935-954
3
G900-65-10-PT-LT
Black
909-915
954-960
4
G1800-65-10-PT-YD
Grey
1710-1735
1805-1835
5
D1800-65-10-PT-LT
Grey
1740-1755
1835-1850
6
W2100-65-10-PT-LT
Golden
1920-1980
2110-2170
Electronical Project
Index
7
Max Gain
65±3dB
8
Uplink output power
≥10dBm
9
Downlink output poer
≥10dBm
10
Noise Factor(Max Gain)
≤5.0dB
11
Passband fluctuation
≤4.0dB
12
ALC/AGC range
≥30dB
13
Third Order Intermodulation
Output 10dBm ≤-50dB
14
Max Input Power
≤-25dBm
15
Spurious Emission
Deviate from the working band edge
Outside of 2.5MHz
9kHz~150kHz
≤-36dBm@1kHz
16
150kHz~30MHz
≤-36dBm@10kHz
17
30MHz~1GHz
≤-36dBm@100kHz
18
1GHz~12.75GHz
≤-36dBm@1MHz
19
Transmission Delay
≤1.0us
20
Indicator lamp working status
ISO(White blue light):Equipment isolation indicator light
21
DN(red light):Equipment Downlink running indicator lamp
22
UP(Green light):Equipment Uplink running indicator lamp
23
Work Voltage
DC 5.0V
24
Work Current
≤1.5A
25
Power Ac adaptor Work Voltage
AC 100-240V, 50/60Hz
26
Environmental temperature
-5℃ ~+45℃
27
Relative Humidity
≤85%
Structure of the project
Index
28
RF Interface
SMA-F
29
Power Interface
KLD-40-17
30
Size
150x115x27 mm
31
Weight
≤0.5kg
